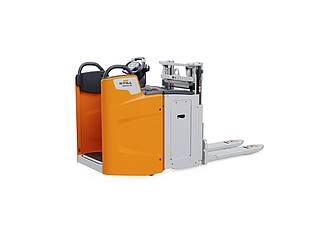

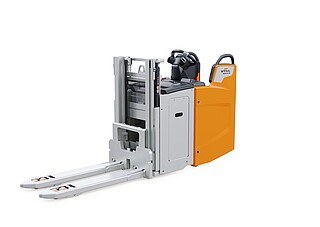

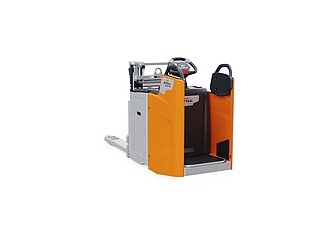

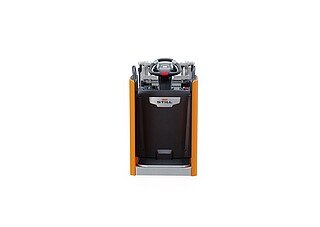

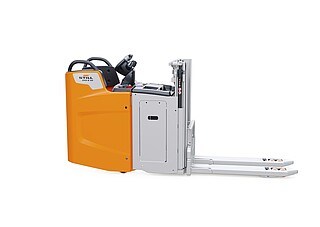

Double Stacker Trucks EXD-S 20
Twice the load –
half the time
- Load capacity 2000 kg
- Rated lift 2424 mm
- Speed 10 km/h
A strong warehouse truck quartet
Turn everyday warehouse challenges into business advantages.
The warehouse is more than a workplace - it is a playing field full of logistical challenges. Those who master these challenges smartly gain tangible business advantages. With our warehouse trucks, your operations will be a success: our enforcers have been designed to make your flow of goods both unrivalled and efficient. With processes that are reliable, safe and easy to handle.
Request to: EXD-S 20
Please fill out the form below. We will get back to you as soon as possible.
The EXD-S 20 in detail
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Smooth electrical steering and intuitive operation
of all functions for left- and right-handed operators with STILL Easy Drive steering wheel
Easy access and optimal protection
for the operator’s back and joints: low access point and air-cushioned stand-on platform optionally available with integrated compressor
Lithium-ion version
with optional built-in charger for decentralised charging at any power socket
Simply powerful
Fast goods handling:
up to 2,000 kg lifting capacity and a maximum speed of 10 km/h
Withstands even the toughest applications:
robust, durable chassis made from solid steel
Swift, safe movement on ramps:
high-powered drive and lift motor and 5-wheel chassis with support stabilising wheels
Built for continuous operation:
reliable, low-maintenance and powerful drive
Simply safe
Working with ease and precision thanks to unobstructed field of vision:
free view mast and centrally positioned tiller
The Dynamic Drive Control assistance system
automatically adjusts the speed to the lift height and load
Move safely
between the truck and shelves at all times thanks to the optimally positioned impact plate
Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering
Optimal protection for the feet
thanks to the low-lying frame
Safe load handling
in cramped environments thanks to compact dimensions
Only moves off once the operator is standing securely:
optional foot sensor detects whether the feet are within the truck’s contour
Simply flexible
High and flexible turnover of goods thanks to double-deck function:
move up to 2,000 kg on the initial lift, up to 1,200 kg on the mast or two loads of up to 1,000 kg on top of each other
Wide range of storage options
and optional accessories bracket for attaching extra equipment such as terminals or security lights
Flexibly configurable driver’s cab
for various key applications, from frequent ramp driving through to long transport distances: rear access, side access or backrest
Suitable driving programmes for any application,
from maximum handling power through to optimal efficiency: ECO, BOOST or Blue-Q
Decentralised and flexible
charging at any power socket with the optional built-in charger
Simply connected
Versatile and flexible access control
with optional FleetManager 4.x
Fast service analysis
and parametrisation of settings thanks to CAN bus interface
Easy integration into material flow management system
thanks to MMS provision
STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion TechnologyApplications
Request to: EXD-S 20
Please fill out the form below. We will get back to you as soon as possible.
Driver assistance systems and functions
Safety Assist
Load backrest
Keeping the goods in place: the load backrest stabilises the transported goods at the fork carriage back so that they can be securely transported from A to B.
Learn moreFleetManager
Who can use which forklift truck for which area of application? What about the truck capacity? When has a shock occurred? Things that are relatively easy to control with just a few forklift trucks become far more complex and difficult to regulate as the fleet size increases. Our smart FleetManager provides the solution. With this innovative software, you are able to control your fleet more efficiently and effectively than ever.
The FleetManager consists of several modules:
- Access authorisation
- Compilation of operating data linked to the truck controller
- Accident detection with truck reaction (e.g. creep speed)
- Load detection via pressure sensor in the lifting hydraulic system without weight indication on the display and two data cards
- Shock detection in connection with FleetManager: the forklift truck detects a potential collision and switches to creep mode, sounds a signal or switches off completely
- Can be configured as per the customer's wishes
The reader for the FleetManager access card is easily accessible on the left next to the steering column. Access to the FleetManager requires special authorisation.
Learn moreDrive Assist
Speed reduction when forks are raised
For the safe transport of goods: when driving with raised forks, there is a risk that the loaded pallets could tip, damaging the goods. The driving speed is automatically reduced depending on the lift height in order to prevent this.
Learn moreMedia Center
Model Overview
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| EXD-S 20 / Li-Ion | 2.000 | 2.424 | 10.0 | 24 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
